数学 / 几何原本 / Proposition I.24

第1卷命题 24 · 两边相等而夹角较大则底边较大

If two triangles have the two sides equal to two sides respectively, but have the one of the angles contained by the equal straight lines greater than the other, they will also have the base greater than the base.

若两个三角形有两边分别相等,但其中一个夹角较大,则它的底边也较大。

A B C D E F G
fig-1

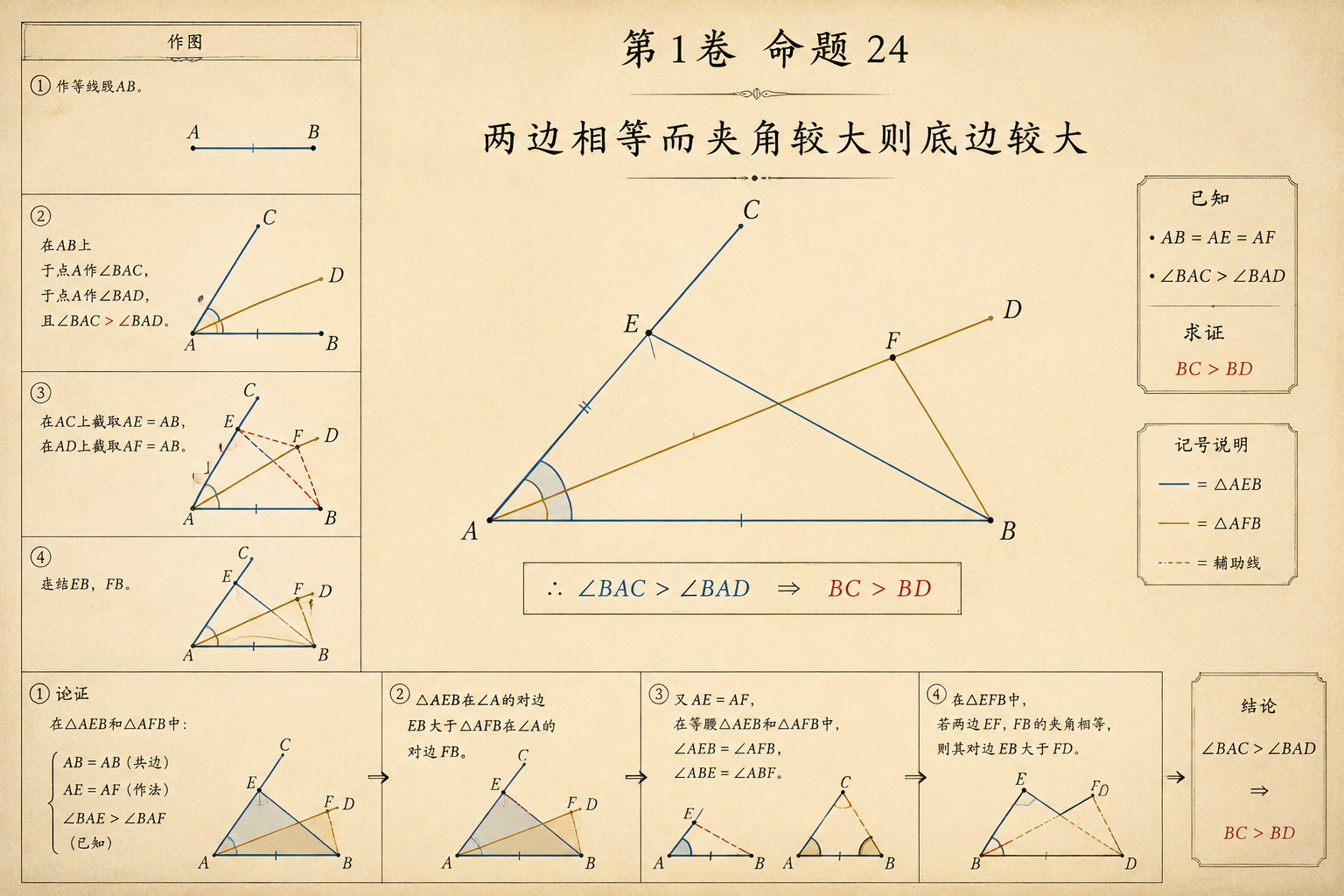

三角形 ABC(A 角较大)与 DEF(D 角较小),两边对应相等;在 DEF 上张开角 EDG=BAC,DG=DF,G 在 DF 外侧。

线

正文图形由校订坐标生成;点、线、角、圆可与证明和问答联动。

分步证明Step-by-step proof
1 / 4
  1. Let ABC, DEF be two triangles having the two sides AB, AC equal to the two sides DE, DF respectively, namely AB to DE, and AC to DF, and let the angle at A be greater than the angle at D; I say that the base BC is also greater than the base EF. For, since the angle BAC is greater than the angle EDF, let there be constructed, on the straight line DE, and at the point D on it, the angle EDG equal to the angle BAC; [I. 23] let DG be made equal to either of the two straight lines AC, DF, and let EG, FG be joined. Then, since AB is equal to DE, and AC to DG, the two sides BA, AC are equal to the two sides ED, DG, respectively; and the angle BAC is equal to the angle EDG; therefore the base BC is equal to the base EG.

    两个三角形有两边分别相等,但其中一个夹角较大。

  2. [I. 4] Again, since DF is equal to DG, the angle DGF is also equal to the angle DFG; [I. 5] therefore the angle DFG is greater than the angle EGF. Therefore the angle EFG is much greater than the angle EGF.

    在较大夹角内作一条线,使其中一部分角等于较小夹角(euclid-elements/book1-prop-023)。

  3. And, since EFG is a triangle having the angle EFG greater than the angle EGF, and the greater angle is subtended by the greater side, [I. 19] the side EG is also greater than EF. But EG is equal to BC.

    euclid-elements/book1-prop-004 得到一个辅助底边等于较小三角形底边。

  4. Therefore BC is also greater than EF. Therefore etc.

    再由 euclid-elements/book1-prop-020 比较剩余三角形,推出较大夹角所对底边较大。
