数学 / 几何原本 / Proposition VI.33

第6卷命题 33 · 等圆中圆周角与弧的比例

In equal circles angles have the same ratio as the circumferences on which they stand, whether they stand at the centres or at the circumferences.

在等圆中,圆心角或圆周角之比等于其所对弧之比。

A B C D E F G H K L M N

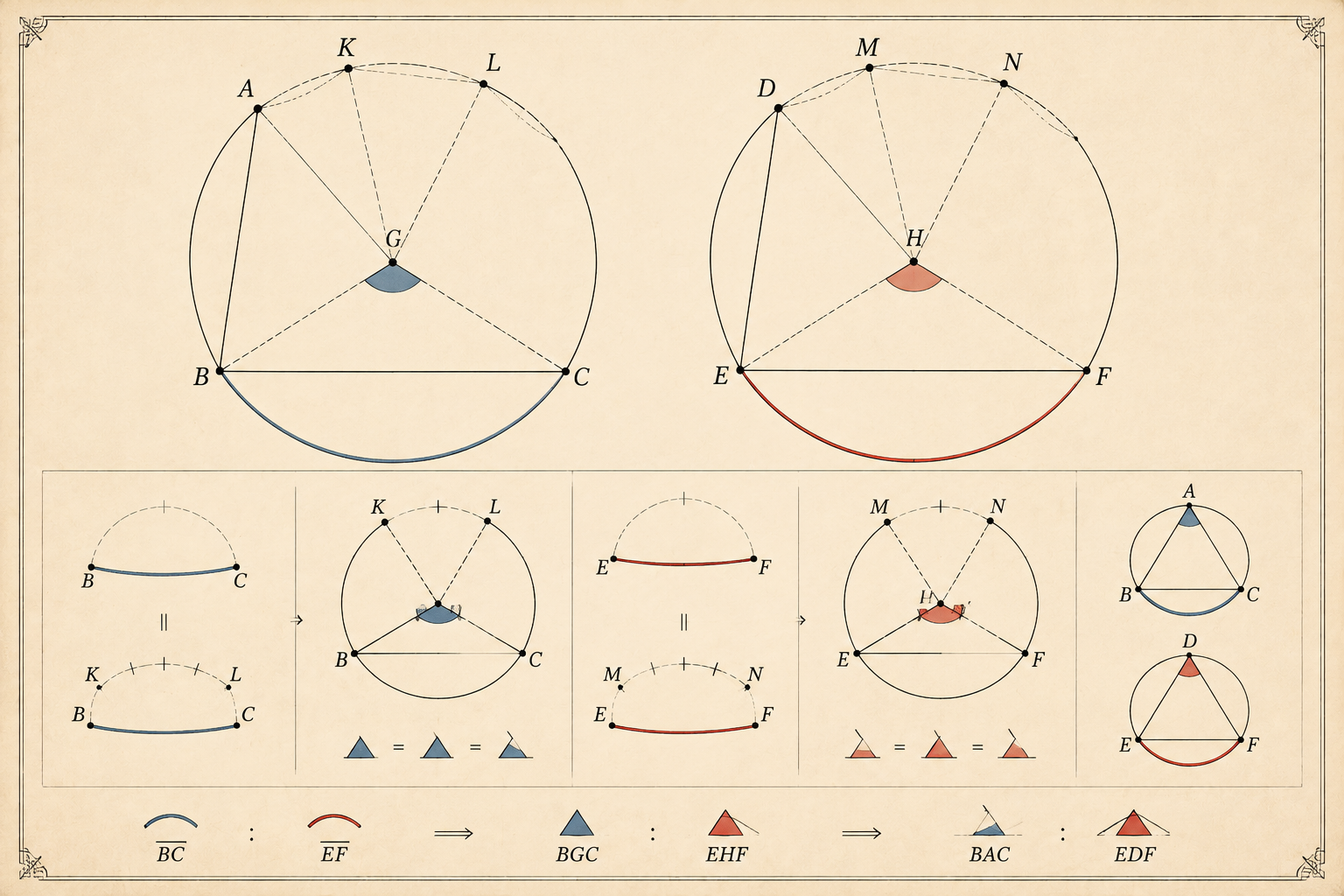

fig-1

两等圆,圆心 G、H:中心角 BGC、EHF 与对应弧 BC、EF 同比;沿弧取等分点 K、L、M、N 与圆周上 A、D,可证圆心角与圆周角之比都等于弧之比。

线

正文图形由校订坐标生成;点、线、角、圆可与证明和问答联动。

分步证明Step-by-step proof
1 / 4
  1. Let ABC, DEF be equal circles, and let the angles BGC, EHF be angles at their centres G, H, and the angles BAC, EDF angles at the circumferences; I say that, as the circumference BC is to the circumference EF, so is the angle BGC to the angle EHF, and the angle BAC to the angle EDF. For let any number of consecutive circumferences CK, KL be made equal to the circumference BC, and any number of consecutive circumferences FM, MN equal to the circumference EF; and let GK, GL, HM, HN be joined. Then, since the circumferences BC, CK, KL are equal to one another, the angles BGC, CGK, KGL are also equal to one another; [III. 27] therefore, whatever multiple the circumference BL is of BC, that multiple also is the angle BGL of the angle BGC.

    设等圆ABC和DEF,圆心分别为G和H,圆周角分别为BAC和EDF。

  2. For the same reason also, whatever multiple the circumference NE is of EF, that multiple also is the angle NHE of the angle EHF. If then the circumference BL is equal to the circumference EN, the angle BGL is also equal to the angle EHN; [III. 27] if the circumference BL is greater than the circumference EN, the angle BGL is also greater than the angle EHN; and, if less, less.

    在弧BC上截取等弧CK、KL,在弧EF上截取等弧FM、MN,连接GK、GL、HM、HN。

  3. There being then four magnitudes, two circumferences BC, EF, and two angles BGC, EHF, there have been taken, of the circumference BC and the angle BGC equimultiples, namely the circumference BL and the angle BGL, and of the circumference EF and the angle EHF equimultiples, namely the circumference EN and the angle EHN. And it has been proved that, if the circumference BL is in excess of the circumference EN, the angle BGL is also in excess of the angle EHN; if equal, equal; and if less, less. Therefore, as the circumference BC is to EF, so is the angle BGC to the angle EHF.

    由等弧对等角(III.27),弧BL是BC的倍量,角BGL也是角BGC的相同倍量;同理,弧EN是EF的倍量,角EHN也是角EHF的相同倍量。

  4. [V. Def. 5] But, as the angle BGC is to the angle EHF, so is the angle BAC to the angle EDF; for they are doubles respectively. Therefore also, as the circumference BC is to the circumference EF, so is the angle BGC to the angle EHF, and the angle BAC to the angle EDF.

    比较弧BL与EN的大小关系,对应角BGL与EHN也有相同大小关系,由比例定义(V. Def.5)得弧BC比EF等于角BGC比EHF;又角BGC是BAC的两倍,EHF是EDF的两倍,故弧BC比EF也等于角BAC比EDF。
