elem.4.10
作一个等腰三角形，使得每个底角是顶角的两倍。

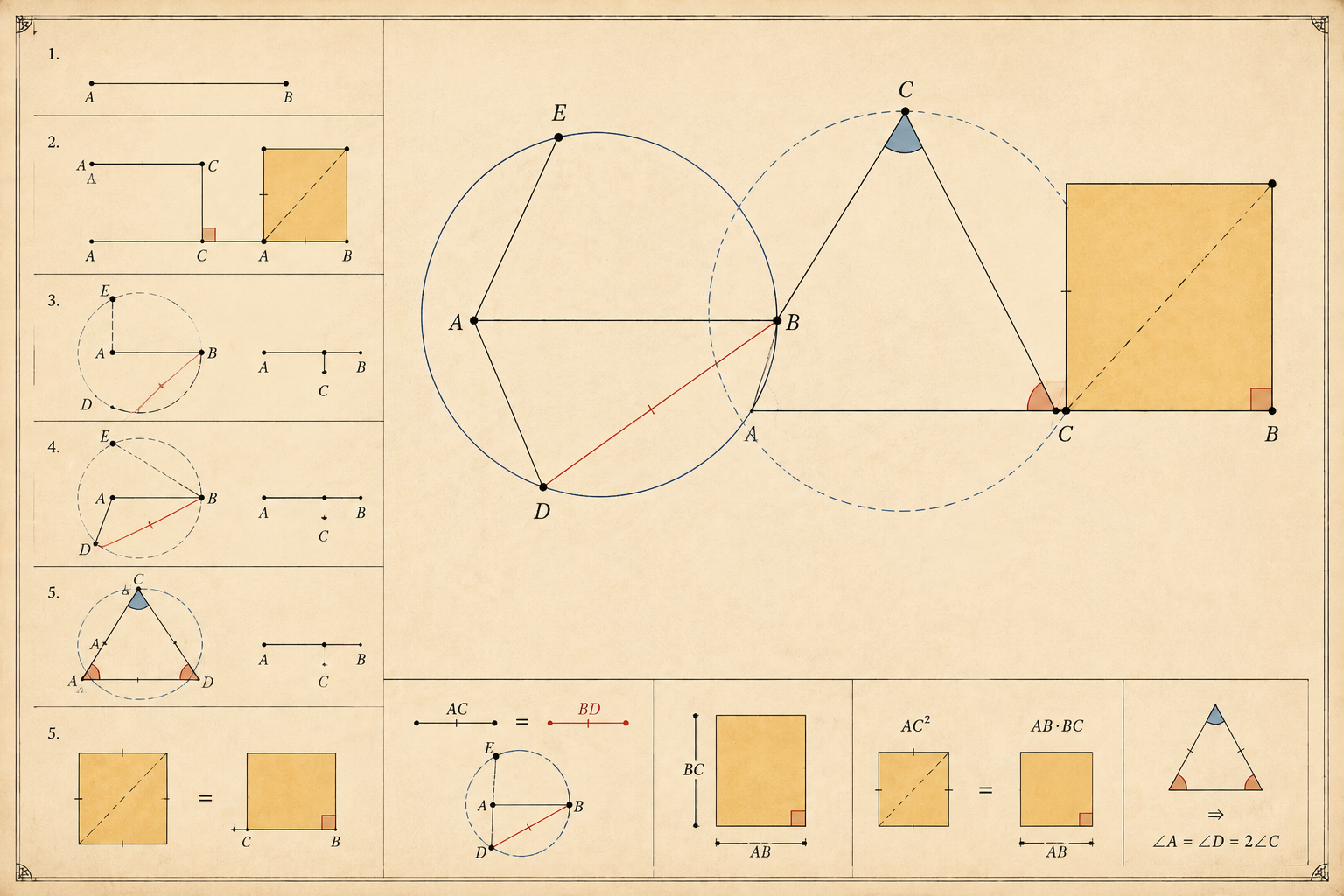

线段 AB，C 在 AB 上使 AB·BC = AC²；以 A 为圆心、AB 为半径作圆 BDE；在圆中作弦 BD=AC；连接 AD、DC，并对 △ACD 作外接圆 ACD（D 处与 BD 相切）。
正文图形由校订坐标生成；点、线、角、圆可与证明和问答联动。
Let any straight line AB be set out, and let it be cut at the point C so that the rectangle contained by AB, BC is equal to the square on CA; [II. 11] with centre A and distance AB let the circle BDE be described, and let there be fitted in the circle BDE the straight line BD equal to the straight line AC which is not greater than the diameter of the circle BDE. [IV. 1] Let AD, DC be joined, and let the circle ACD be circumscribed about the triangle ACD. [IV. 5] Then, since the rectangle AB, BC is equal to the square on AC, and AC is equal to BD, therefore the rectangle AB, BC is equal to the square on BD. And, since a point B has been taken outside the circle ACD, and from B the two straight lines BA, BD have fallen on the circle ACD, and one of them cuts it, while the other falls on it, and the rectangle AB, BC is equal to the square on BD, therefore BD touches the circle ACD.
设任意线段AB，在C点分割使AB·BC = AC²。以A为圆心AB为半径作圆BDE，在圆内取弦BD等于AC。
[III. 37] Since, then, BD touches it, and DC is drawn across from the point of contact at D, therefore the angle BDC is equal to the angle DAC in the alternate segment of the circle. [III. 32] Since, then, the angle BDC is equal to the angle DAC, let the angle CDA be added to each; therefore the whole angle BDA is equal to the two angles CDA, DAC. But the exterior angle BCD is equal to the angles CDA, DAC; [I. 32] therefore the angle BDA is also equal to the angle BCD.
连接AD、DC，作三角形ACD的外接圆。由AB·BC = AC²及AC = BD得AB·BC = BD²，故BD切圆ACD于D。
But the angle BDA is equal to the angle CBD, since the side AD is also equal to AB; [I. 5] so that the angle DBA is also equal to the angle BCD. Therefore the three angles BDA, DBA, BCD are equal to one another. And, since the angle DBC is equal to the angle BCD, the side BD is also equal to the side DC.
由切线与弦的性质，∠BDC = ∠DAC。加∠CDA得∠BDA = ∠CDA + ∠DAC = ∠BCD。又AD = AB，故∠BDA = ∠CBD，从而∠DBA = ∠BCD。
[I. 6] But BD is by hypothesis equal to CA; therefore CA is also equal to CD, so that the angle CDA is also equal to the angle DAC; [I. 5] therefore the angles CDA, DAC are double of the angle DAC. But the angle BCD is equal to the angles CDA, DAC; therefore the angle BCD is also double of the angle CAD. But the angle BCD is equal to each of the angles BDA, DBA; therefore each of the angles BDA, DBA is also double of the angle DAB.
由∠DBC = ∠BCD得BD = DC，而BD = AC，故AC = CD，∠CDA = ∠DAC。于是∠BCD = ∠CDA + ∠DAC = 2∠DAC，且∠BDA = ∠DBA = ∠BCD，因此每个底角是顶角的两倍。
