第4卷命题 7 · 圆外切正方形作图

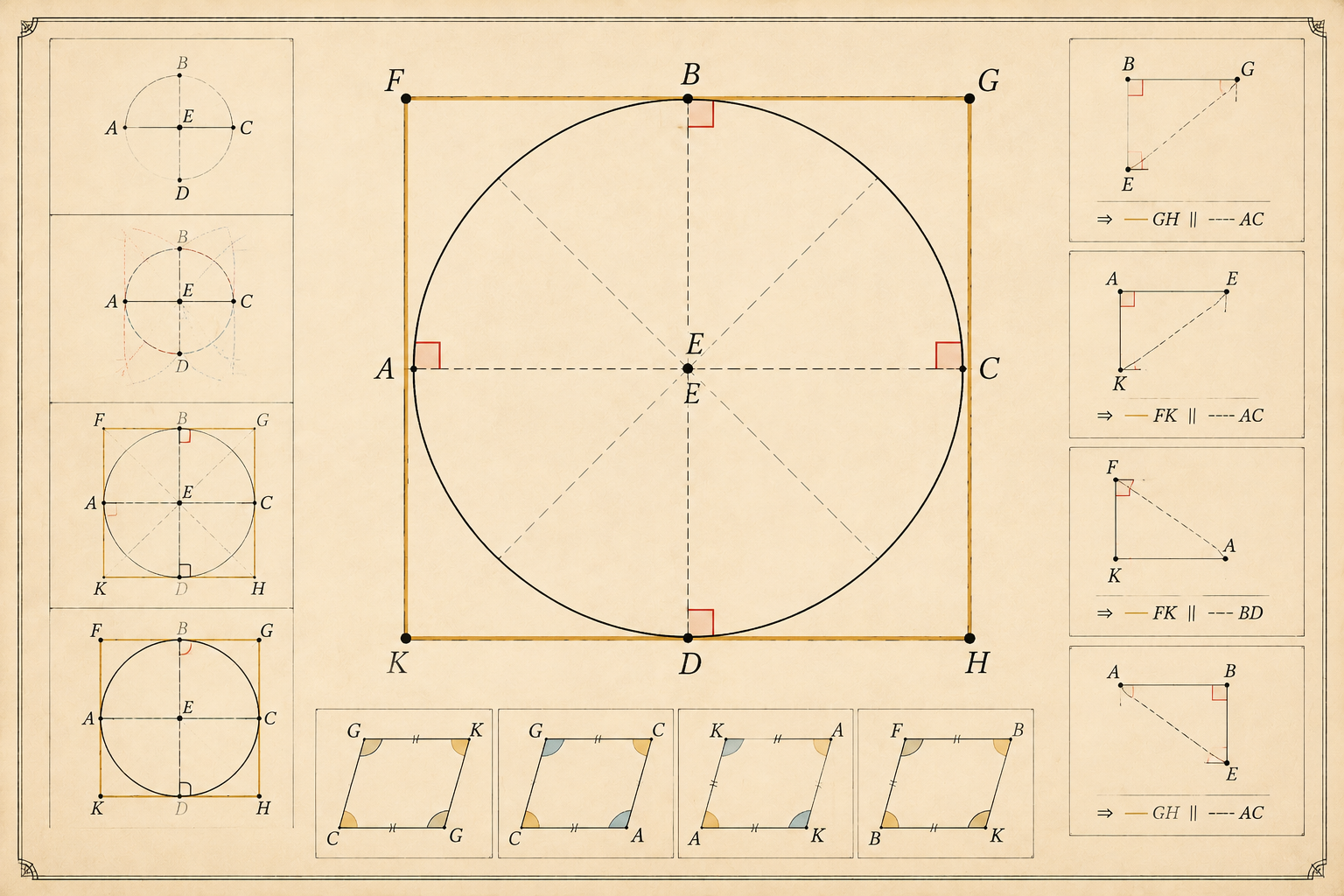

Let ABCD be the given circle; thus it is required to circumscribe a square about the circle ABCD. Let two diameters AC, BD of the circle ABCD be drawn at right angles to one another, and through the points A, B, C, D let FG, GH, HK, KF be drawn touching the circle ABCD. [III. 16, Por.] Then, since FG touches the circle ABCD, and EA has been joined from the centre E to the point of contact at A, therefore the angles at A are right. [III. 18] For the same reason the angles at the points B, C, D are also right.

作圆的两条互相垂直的直径AC和BD，过点A、B、C、D作圆的切线FG、GH、HK、KF。

Now, since the angle AEB is right, and the angle EBG is also right, therefore GH is parailel to AC. [I. 28] For the same reason AC is also parallel to FK, so that GH is also parallel to FK. [I. 30] Similarly we can prove that each of the straight lines GF, HK is parallel to BED.

由于切线垂直于过切点的半径，故∠A、∠B、∠C、∠D均为直角。

Therefore GK, GC, AK, FB, BK are parallelograms; therefore GF is equal to HK, and GH to FK. [I. 34] And, since AC is equal to BD, and AC is also equal to each of the straight lines GH, FK, while BD is equal to each of the straight lines GF, HK, [I. 34] therefore the quadrilateral FGHK is equilateral. I say next that it is also right-angled. For, since GBEA is a parallelogram, and the angle AEB is right, therefore the angle AGB is also right.

由∠AEB和∠EBG均为直角，得GH平行于AC；同理AC平行于FK，故GH平行于FK。类似可证GF平行于HK。

[I. 34] Similarly we can prove that the angles at H, K, F are also right. Therefore FGHK is right-angled. But it was also proved equilateral; therefore it is a square; and it has been circumscribed about the circle ABCD.

因此四边形FGHK为平行四边形，且边相等（因AC=BD），又各角均为直角，故为正方形，且外切于圆。
