To construct a cube and comprehend it in a sphere, like the pyramid; and to prove that the square on the diameter of the sphere is triple of the square on the side of the cube.
作一个立方体，使其内接于给定的球，如同金字塔那样；并证明球的直径上的正方形等于立方体边上的正方形的三倍。

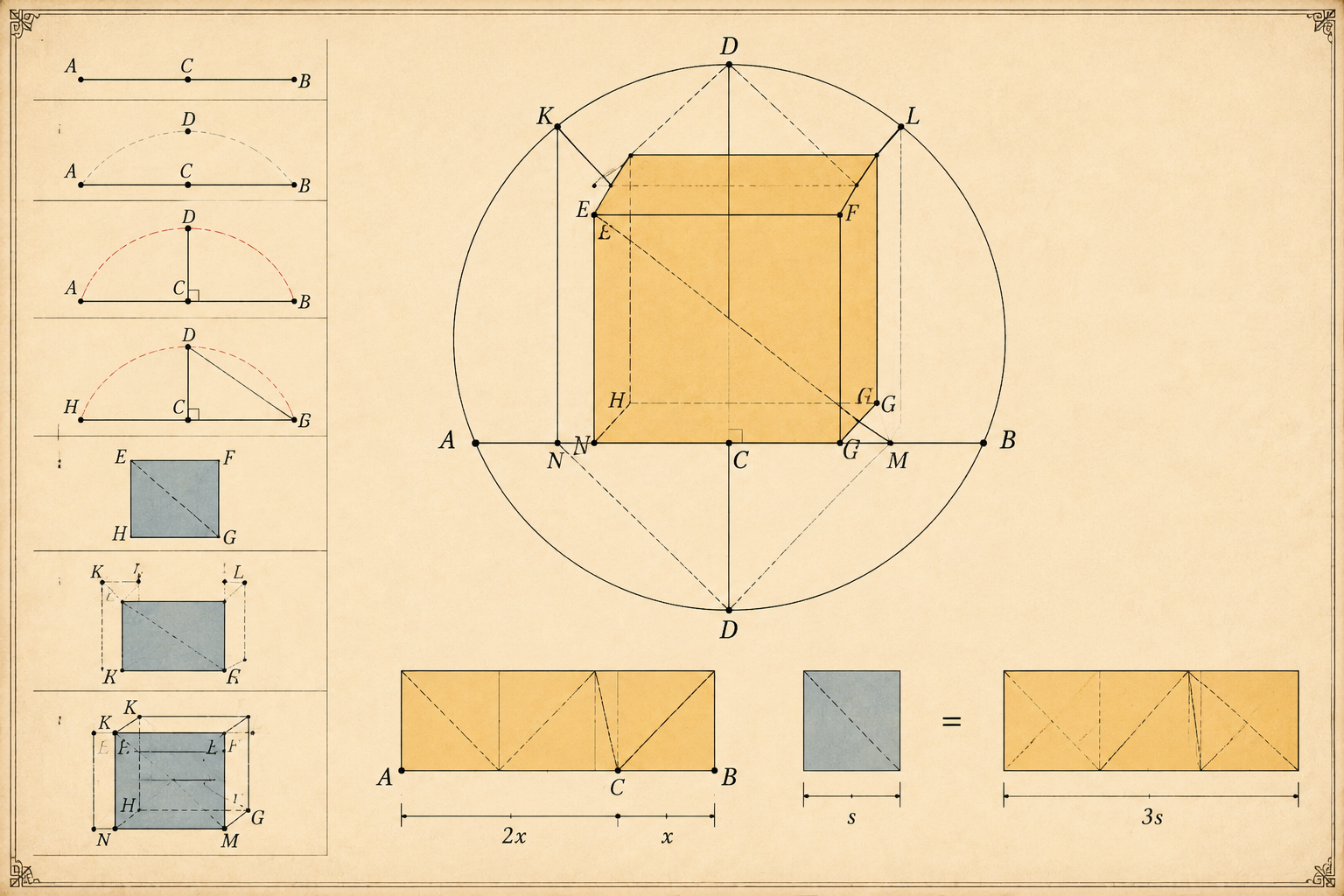

Let the diameter AB of the given sphere be set out, and let it be cut at C so that AC is double of CB; let the semicircle ADB be described on AB, let CD be drawn from C at right angles to AB, and let DB be joined; let the square EFGH having its side equal to DB be set out, from E, F, G, H let EK, FL, GM, HN be drawn at right angles to the plane of the square EFGH, from EK, FL, GM, HN let EK, FL, GM, HN respectively be cut off equal to one of the straight lines EF, FG, GH, HE, and let KL, LM, MN, NK be joined; therefore the cube FN has been constructed which is contained by six equal squares. It is then required to comprehend it in the given sphere, and to prove that the square on the diameter of the sphere is triple of the square on the side of the cube. For let KG, EG be joined. Then, since the angle KEG is right, because KE is also at right angles to the plane EG and of course to the straight line EG also, [XI. Def. 3] therefore the semicircle described on KG will also pass through the point E.
设给定球的直径AB，在AB上取点C使AC=2CB；以AB为直径作半圆ADB，从C作CD垂直于AB，连接DB。
Again, since GF is at right angles to each of the straight lines FL, FE, GF is also at right angles to the plane FK; hence also, if we join FK, GF will be at right angles to FK; and for this reason again the semicircle described on GK will also pass through F. Similarly it will also pass through the remaining angular points of the cube. If then, KG remaining fixed, the semicircle be carried round and restored to the same position from which it began to be moved, the cube will be comprehended in a sphere.
作正方形EFGH，其边等于DB；从E、F、G、H作垂直于正方形平面的线段EK、FL、GM、HN，各等于EF；连接KL、LM、MN、NK，得立方体FN。
I say next that it is also comprehended in the given sphere. For, since GF is equal to FE, and the angle at F is right, therefore the square on EG is double of the square on EF. But EF is equal to EK; therefore the square on EG is double of the square on EK; hence the squares on GE, EK, that is the square on GK [I. 47], is triple of the square on EK. And, since AB is triple of BC, while, as AB is to BC, so is the square on AB to the square on BD, therefore the square on AB is triple of the square on BD.
连接KG、EG。因∠KEG为直角，故以KG为直径的半圆过E；同理，该半圆也过F及其他顶点，故立方体内接于以KG为直径的球。
But the square on GK was also proved triple of the square on KE. And KE was made equal to DB; therefore KG is also equal to AB. And AB is the diameter of the given sphere; therefore KG is also equal to the diameter of the given sphere.
由GF=FE且∠F为直角，得EG²=2EF²；又EF=EK，故EG²=2EK²，从而GK²=3EK²。因AB=3BC且AB:BC=AB²:BD²，得AB²=3BD²；而BD=EK，故KG=AB，即立方体内接于给定球。
