数学 / 几何原本 / Proposition X.31

第10卷命题 31 · 求作两中项线满足特定条件

To find two medial straight lines commensurable in square only, containing a rational rectangle, and such that the square on the greater is greater than the square on the less by the square on a straight line commensurable in length with the greater.

求作两条中项线段,它们仅平方可通约,所成矩形为有理,且较大线段上的正方形比较小线段上的正方形大出一个与较大线段长度可通约的线段上的正方形。

A B C D
fig-1

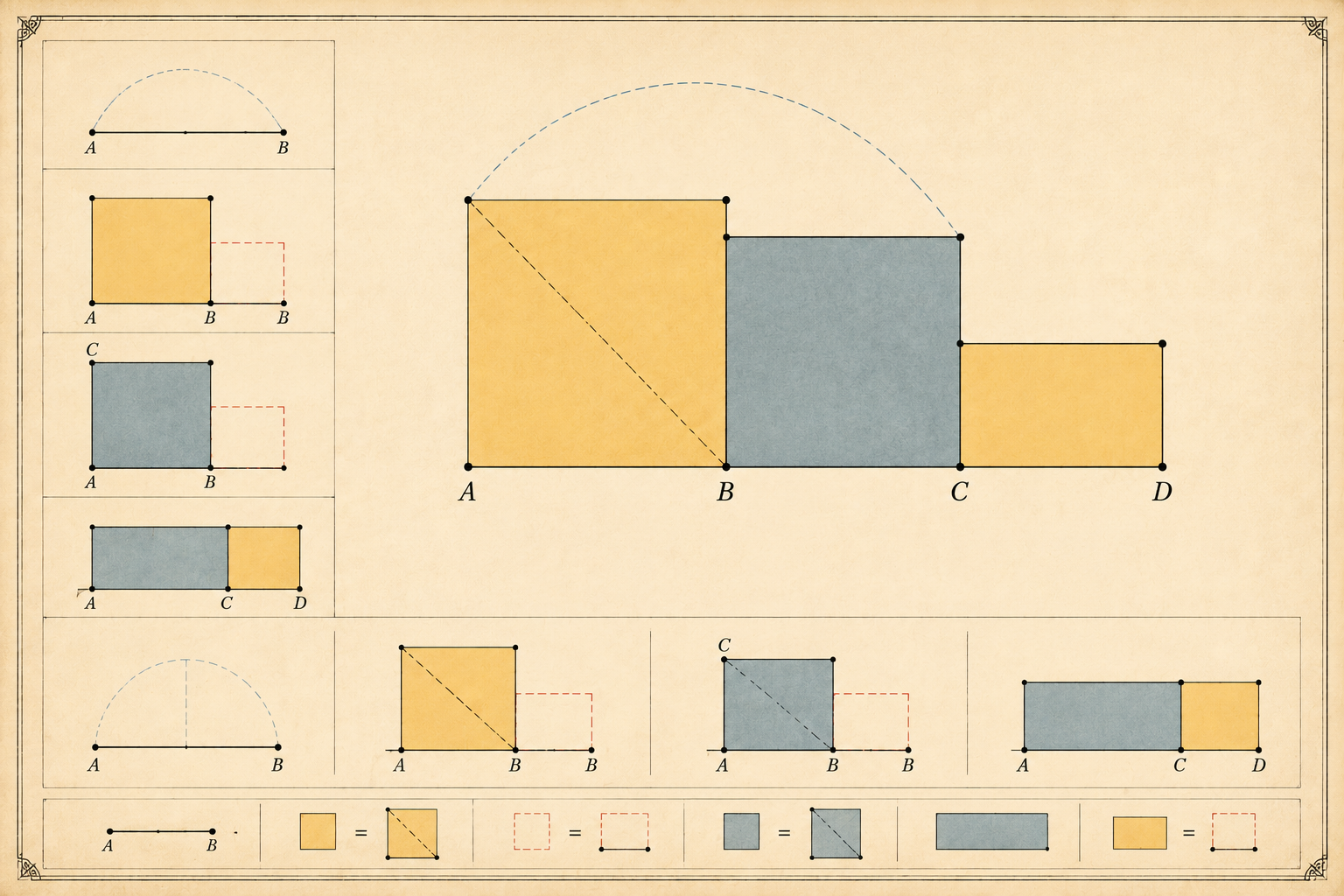

本页以“求作两中项线满足特定条件”整体图解辅助阅读;点、线、角、圆索引已按命题文字和证明步骤校订,可与证明和问答联动。

线

正文图形由校订坐标生成;点、线、角、圆可与证明和问答联动。

分步证明Step-by-step proof
1 / 4
  1. Let there be set out two rational straight lines A, B commensurable in square only and such that the square on A, being the greater, is greater than the square on B the less by the square on a straight line commensurable in length with A. [X. 29] And let the square on C be equal to the rectangle A, B. Now the rectangle A, B is medial; [X. 21] therefore the square on C is also medial; therefore C is also medial.

    设两有理线段A、B仅平方可通约,且A较大,A上的正方形比B上的正方形大出一个与A长度可通约的线段上的正方形。

  2. [X. 21] Let the rectangle C, D be equal to the square on B. Now the square on B is rational; therefore the rectangle C, D is also rational. And since, as A is to B, so is the rectangle A, B to the square on B, while the square on C is equal to the rectangle A, B, and the rectangle C, D is equal to the square on B, therefore, as A is to B, so is the square on C to the rectangle C, D.

    作C上的正方形等于A、B所成矩形;因该矩形为中项线,故C也为中项线。

  3. But, as the square on C is to the rectangle C, D, so is C to D; therefore also, as A is to B, so is C to D. But A is commensurable with B in square only; therefore C is also commensurable with D in square only. [X. 11] And C is medial; therefore D is also medial.

    作C、D所成矩形等于B上的正方形;因B上的正方形为有理,故该矩形也为有理。

  4. [X. 23, addition] And since, as A is to B, so is C to D, and the square on A is greater than the square on B by the square on a straight line commensurable with A, therefore also the square on C is greater than the square on D by the square on a straight line commensurable with C. [X. 14] Therefore two medial straight lines C, D, commensurable in square only and containing a rational rectangle, have been found, and the square on C is greater than the square on D by the square on a straight line commensurable in length with C.

    由A比B等于C比D,且A与B仅平方可通约,得C与D也仅平方可通约;又A上的正方形比B上的正方形大出与A可通约的线段上的正方形,故C上的正方形比D上的正方形大出与C可通约的线段上的正方形。
