数学 / 几何原本 / Proposition X.44

第10卷命题 44 · 第二双中项线仅可一次分割

A second bimedial straight line is divided at one point only.

第二双中项线仅能被分割于一点。

A B C D E F G H K L M N
fig-1

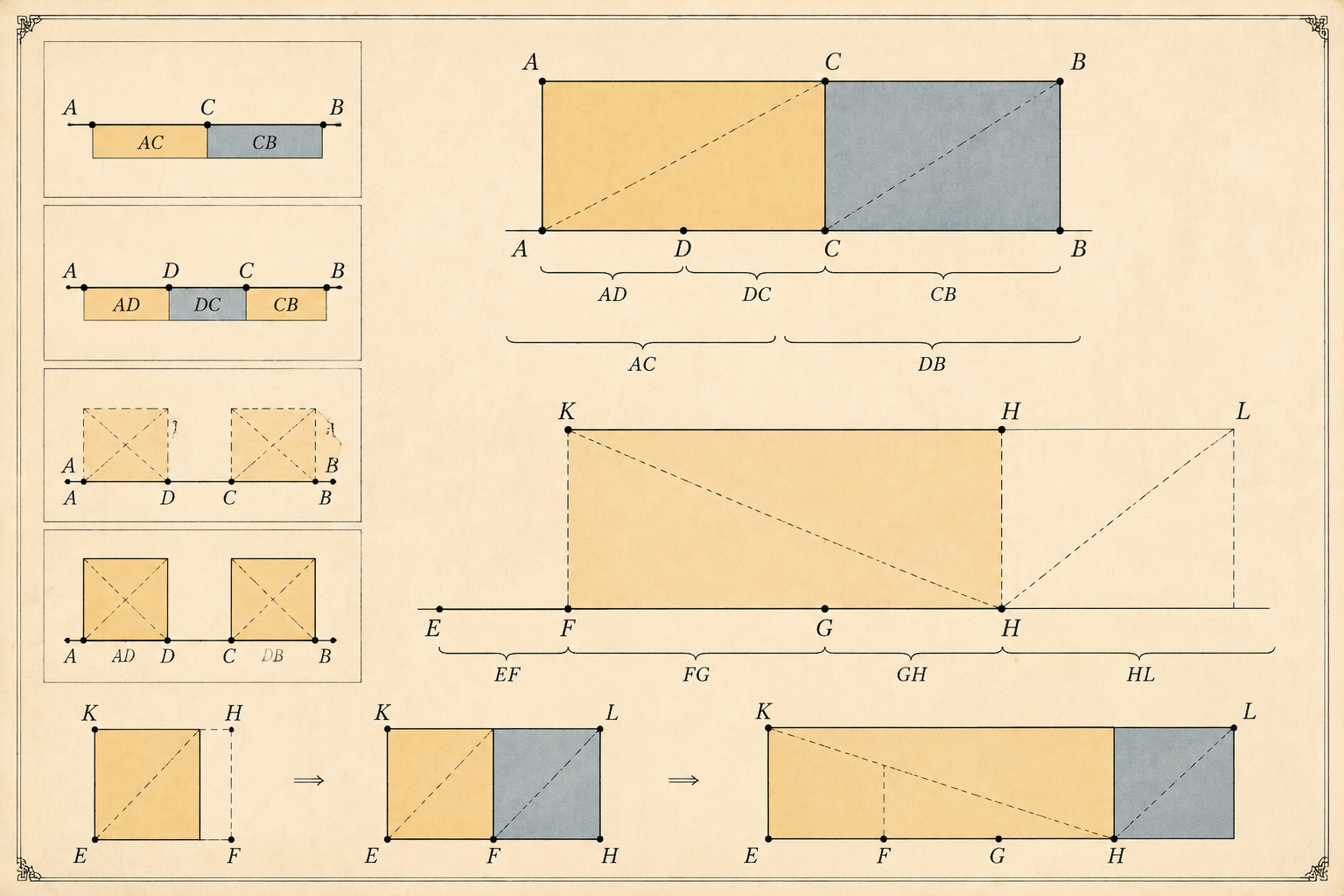

本页以“第二双中项线仅可一次分割”整体图解辅助阅读;点、线、角、圆索引已按命题文字和证明步骤校订,可与证明和问答联动。

线

正文图形由校订坐标生成;点、线、角、圆可与证明和问答联动。

分步证明Step-by-step proof
1 / 4
  1. Let AB be a second bimedial straight line divided at C, so that AC, CB are medial straight lines commensurable in square only and containing a medial rectangle; [X. 38 ] it is then manifest that C is not at the point of bisection, because the segments are not commensurable in length. I say that AB is not so divided at another point. For, if possible, let it be divided at D also, so that AC is not the same with DB, but AC is supposed greater; it is then clear that the squares on AD, DB are also, as we proved above [Lemma], less than the squares on AC, CB; and suppose that AD, DB are medial straight lines commensurable in square only and containing a medial rectangle. Now let a rational straight line EF be set out, let there be applied to EF the rectangular parallelogram EK equal to the square on AB, and let EG equal to the squares on AC, CB be subtracted; therefore the remainder HK is equal to twice the rectangle AC, CB. [II. 4 ] Again, let there be subtracted EL, equal to the squares on AD, DB, which were proved less than the squares on AC, CB [Lemma ]; therefore the remainder MK is also equal to twice the rectangle AD, DB. Now, since the squares on AC, CB are medial, therefore EG is medial.

    设AB为第二双中项线,被分割于C,则AC、CB为仅平方可通约且含中项矩形的中项线。

  2. And it is applied to the rational straight line EF; therefore EH is rational and incommensurable in length with EF. [X. 22 ] For the same reason HN is also rational and incommensurable in length with EF. And, since AC, CB are medial straight lines commensurable in square only, therefore AC is incommensurable in length with CB. But, as AC is to CB, so is the square on AC to the rectangle AC, CB; therefore the square on AC is incommensurable with the rectangle AC, CB. [X. 11 ] But the squares on AC, CB are commensurable with the square on AC; for AC, CB are commensurable in square.

    假设AB也可被分割于另一点D,且AD、DB为仅平方可通约且含中项矩形的中项线。

  3. [x. 15 ] And twice the rectangle AC, CB is commensurable with the rectangle AC, CB. [X. 6 ] Therefore the squares on AC, CB are also incommensurable with twice the rectangle AC, CB. [X. 13 ] But EG is equal to the squares on AC, CB, and HK is equal to twice the rectangle AC, CB; therefore EG is incommensurable with HK, so that EH is also incommensurable in length with HN. [VI. 1 , X. 11 ] And they are rational; therefore EH, HN are rational straight lines commensurable in square only. But, if two rational straight lines commensurable in square only be added together, the whole is the irrational which is called binomial.

    作有理线段EF,在其上作矩形EK等于AB上的正方形,减去EG等于AC、CB上的正方形之和,得HK等于二倍矩形AC、CB;再减去EL等于AD、DB上的正方形之和,得MK等于二倍矩形AD、DB。

  4. [X. 36 ] Therefore EN is a binomial straight line divided at H. In the same way EM, MN will also be proved to be rational straight lines commensurable in square only; and EN will be a binomial straight line divided at different points, H and M. And EH is not the same with MN. For the squares on AC, CB are greater than the squares on AD, DB. But the squares on AD, DB are greater than twice the rectangle AD, DB; therefore also the squares on AC, CB, that is, EG, are much greater than twice the rectangle AD, DB, that is, MK, so that EH is also greater than MN.

    由EG与HK不可通约,得EH与HN为仅平方可通约的有理线段,故EN为二项线,分割点H;同理EN也可被分割于M,但EH与MN不等,矛盾。
